Calculate tile count, thinset bags, grout pounds, and total cost — with a live HTML5 Canvas grid visualizer showing exactly how tiles lay out across your floor or wall.
How to Use the Tile Layout Calculator

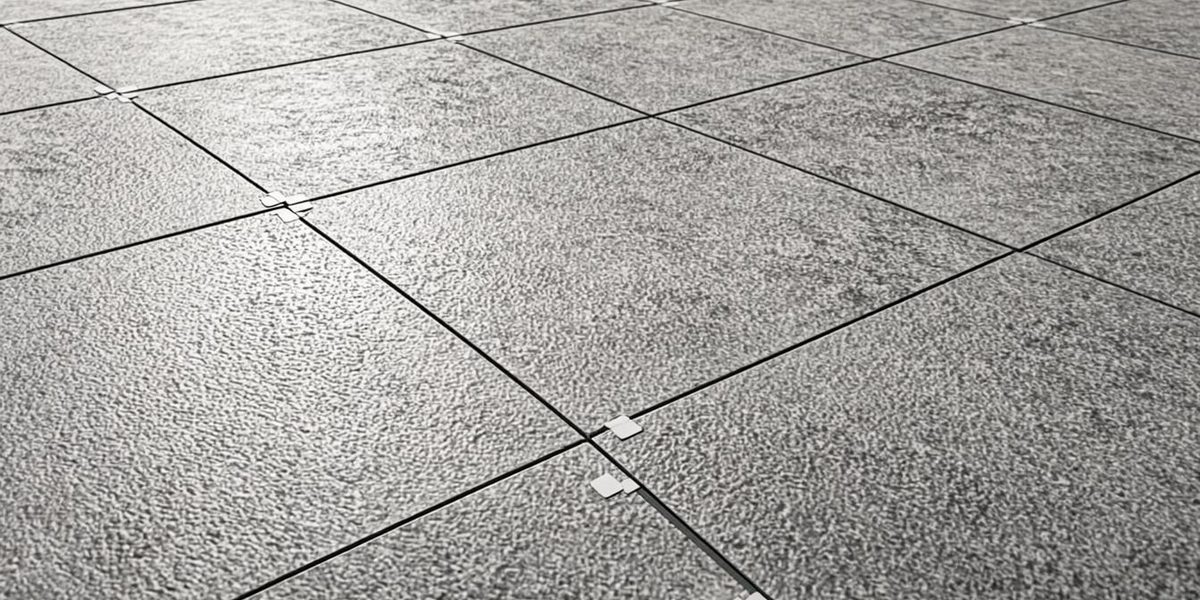

Start by measuring your tile's actual face dimensions — not the nominal size. A "12-inch" ceramic tile often measures 11-3/4 inches, and a "24-inch" porcelain plank might actually be 23-1/2. Use the true face size; the calculator adds the grout gap separately. If you're unsure, lay a few tiles on the floor with spacers and measure the combined width to verify.
For the grout gap, 1/8 inch is the residential standard for ceramic and porcelain. Smaller gaps (1/16") require rectified porcelain tiles with precisely cut edges and unsanded grout. Larger gaps (3/16" or 1/4") are common for natural stone and require sanded grout to prevent shrinkage cracking. The gap directly affects how many tiles fit and how much grout you need.
Waste factor is critical for tile because of cuts, breakage, and pattern matching. Ten percent is the standard minimum for straight-lay patterns. Fifteen percent is recommended for diagonal (45-degree) layouts, where every perimeter tile needs to be cut. Twenty percent or more is appropriate for herringbone, chevron, or Versailles patterns where waste is inherent to the design.
Reading the Visualizer
The Canvas visualization shows the actual tile layout to scale, with each tile drawn in cream and grout joints in orange. Tiles along the perimeter are clipped to the room boundary — this is exactly what happens in real installations, where partial tiles fill in against the walls. Use the visualizer to confirm that your chosen tile size produces a layout you find aesthetically acceptable (some layouts produce ugly slivers along one wall — you may want to adjust your starting point or grout line).
Choosing the Right Thinset
Not all thinsets are created equal. Standard unmodified thinset (ANSI A118.1) is fine for ceramic tile on cement board or poured concrete. Modified thinset (ANSI A118.4) adds polymers for flexibility and bond strength — required for porcelain, large-format tile (any side over 15 inches), and any installation over plywood or waterproofing membranes. For natural stone, use a white thinset to prevent color bleed-through. Coverage varies: 75 sq ft per 50-lb bag with a 1/4" notch, 40 sq ft per bag with a 1/2" notch for large-format tile.
Pro Tip
Back-butter large-format tiles (16"+ on any side) with a thin layer of thinset in addition to the troweled floor. This achieves the 95% coverage required by TCNA standards and eliminates hollow spots that lead to cracking.
The Math Behind the Calculator
Tile estimating starts with effective tile size — the tile plus its share of the grout gap. Two tiles laid side by side share one gap, so each tile "owns" half a gap on each side, totaling one full gap per tile:
effective_tile_length = tile_length + grout_gap
effective_tile_width = tile_width + grout_gap
tiles_along_room_length = ceil(room_length / effective_tile_length)
tiles_along_room_width = ceil(room_width / effective_tile_width)
base_tiles = tiles_along_room_length × tiles_along_room_width
tiles_needed = ceil(base_tiles × (1 + waste% / 100))
Thinset Coverage
Thinset coverage depends on trowel notch size, which depends on tile size:
- 3/16" V-notch — mosaics and tile up to 4". Covers ~125 sq ft per 50-lb bag.
- 1/4" square notch — tile 4" to 15". Covers ~75 sq ft per bag. The residential default.
- 1/2" square notch — large-format tile 15"+. Covers ~40 sq ft per bag.
This calculator uses 75 sq ft per bag (the 1/4" notch default). For large-format tile, expect to buy roughly double the thinset.
Grout Coverage
Grout coverage depends on tile size, gap width, and tile depth. The general formula is:
grout_volume = (tile_length + tile_width) × gap_width × tile_depth
grout_per_tile = grout_volume / (tile_length × tile_width)
total_grout = grout_per_tile × area_sq_ft × 100 (cu in per sq ft)
In practice, one pound of grout covers approximately 25 square feet for a standard 1/8" gap with 12-inch tile. Smaller tiles (more joints per square foot) consume more grout; larger tiles consume less. The calculator uses the 25 sq ft/lb rule of thumb, which works well for 8" to 16" tiles with 1/8" gaps.
Worked Example: 12×10 Bathroom Floor with 12×12 Tile
A typical small bathroom: 12 feet by 10 feet (120 sq ft), 12" square porcelain tile, 1/8" grout gap, 10% waste. Here's the breakdown:
- Effective tile size: 12 + 0.125 = 12.125 inches.
- Tiles along 12-ft (144") wall: ceil(144 / 12.125) = 12 tiles.
- Tiles along 10-ft (120") wall: ceil(120 / 12.125) = 10 tiles.
- Base tiles: 12 × 10 = 120 tiles.
- With 10% waste: 120 × 1.10 = 132 tiles.
- Thinset: 120 sq ft ÷ 75 = 1.6 → 2 bags.
- Grout: 120 sq ft ÷ 25 = 4.8 → 5 pounds.
- At $2.50/tile, $35/thinset, $2/grout: $330 + $70 + $10 = $410 materials.
If you switched to a herringbone pattern, you'd set waste to 20% — bringing tile count to 144 and adding $30 to the budget. If you upsized to 24×24 porcelain planks, you'd need only 40 base tiles but would require a 1/2" notch trowel, doubling thinset consumption to 4 bags. The calculator adjusts instantly when you change inputs.
Reminder
Tile cost excludes waterproofing membrane (Schluter Kerdi, RedGard), cement board if going over wood subfloor, sealer for natural stone, transition strips, and labor. For a typical bathroom, membrane and backer board add $100–$200 to the materials.
